HTD Series Belt Update for Joint 3

$32.50

This combo kit provides all the primary structural and hardware components to build the robot. You do need to purchase the motors and drivers factory direct from Stepperonline. To keep the AR4 project as low cost as possible I dont mark these up, add any taxes, tariffs or additional shipping fees - purchasing the motors direct keeps the robot cost as low as possible. You also need to 3D print a number of the covers and spacers - this also keeps the project cost as low as possible not having to pay for injected molded components.

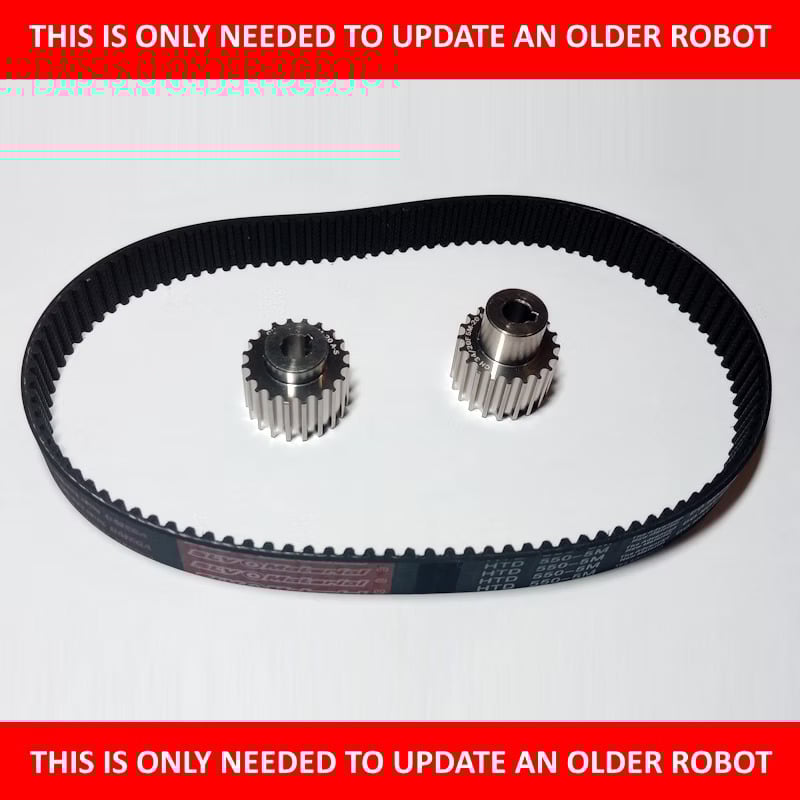

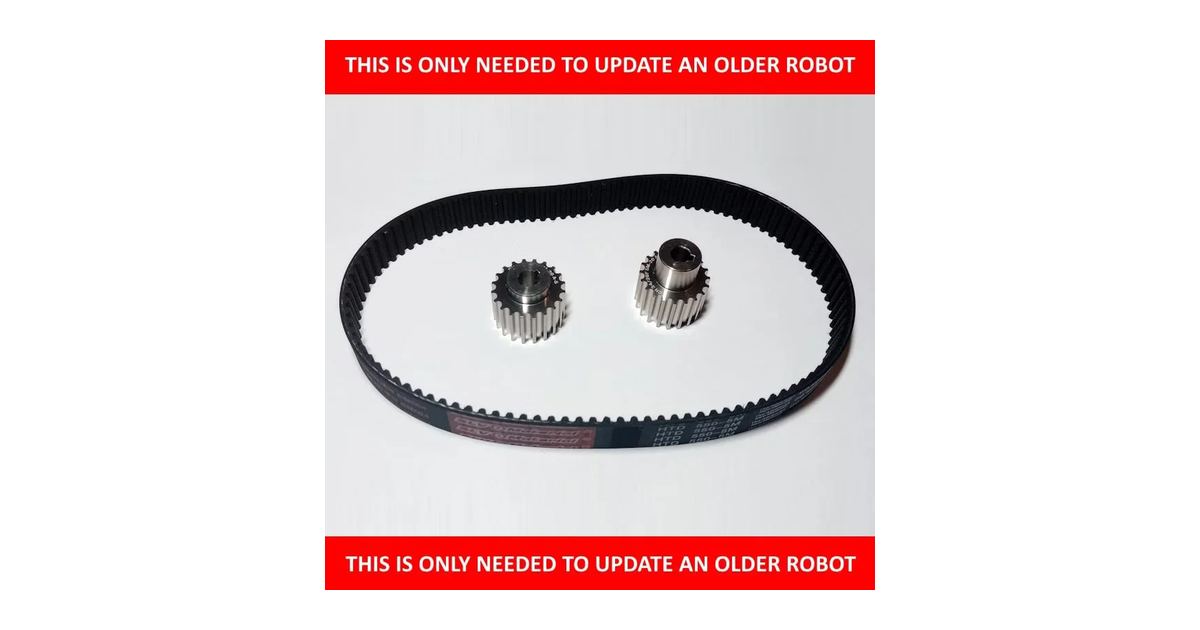

This includes the long and short HTD-20 pulleys and HTD 550-5M belt for the AR4 robot. These parts come with the robot combo kit and hardware kit.

This update is only needed if you have previously built the AR4 robot and would like to upgrade your belt and pulleys.
View the Robot Build Manual
Your complete online reference. Includes full assembly instructions, wiring diagrams, and technical specs. Always up to date, perfect for printing or workshop use.
