First of all, thank you for such an amazing project. The AR4 robotic arm is truly incredible. How challenging it must have been to get this project to the stage it’s at now.
I am a beginner from China, and I have built my own robotic arm's structure. During this process, I’ve learned a lot. I used multiple harmonic reducers and custom-made electric limit sensors, and I’ve also replaced the motors with servos.
Now, my robotic arm is able to move. When it runs, the XYZ linear movement is fine, but for the Ry axis, it looks like J6 rotates around the Y-axis, but Rx and Rz are not correct. Also, Tx, Ty, and Tz seem to move along the tool head’s XYZ directions, but in practice, I’ve noticed that J5 slowly shifts towards the limit switch direction. However, when I execute the Home command, it returns to the home standby position.
This is my robotic。
This is the DH parameters of the robotic。
This is a video of the Tx running in a loop several times while staying at the home position.

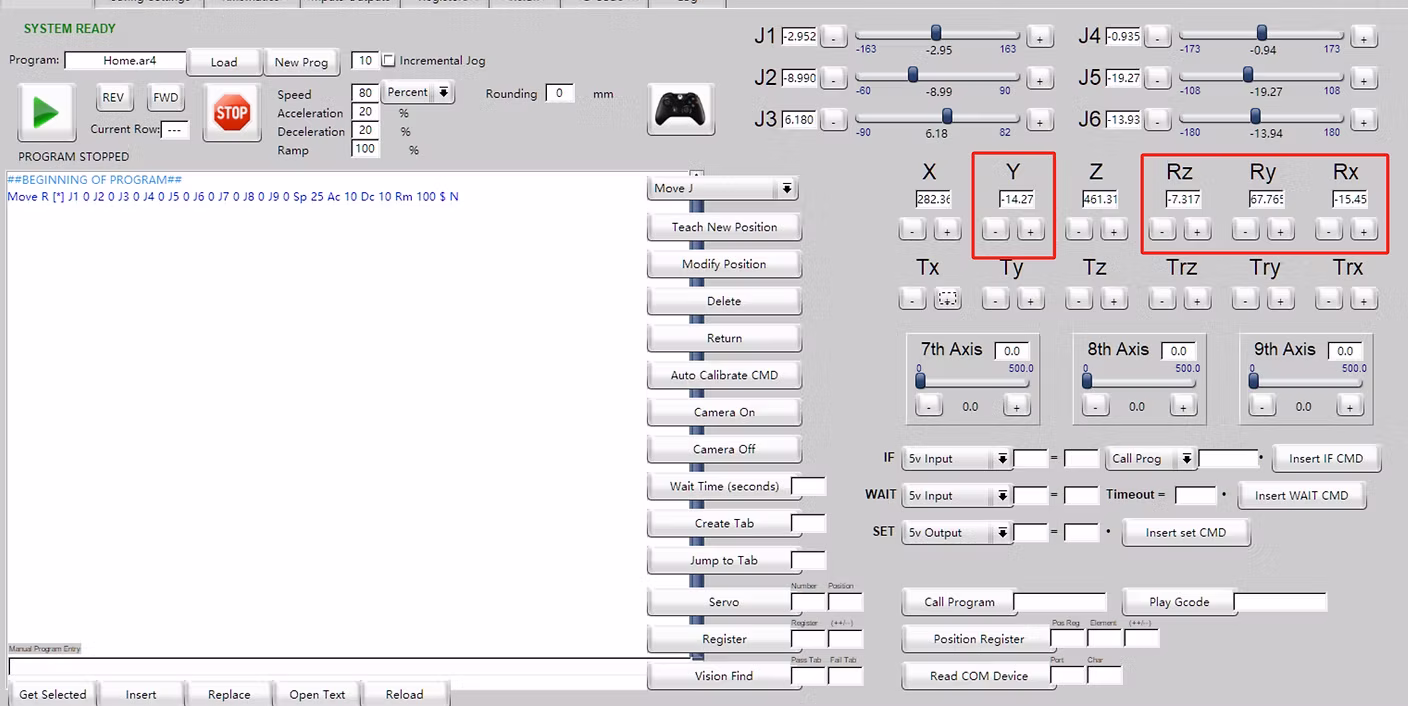

Data displayed by the HMI software after running
When it runs again to the home position, it returns to the correct position.
It looks like you are running version 5.1 that was just released. Do you see the same behavior in previous software / sketch versions?
Thank you for your prompt reply.
Yes, I am using version 5.1. I have also tried versions 4.3.1, 4.4, and 5.0, but the issue remains the same. Moving Tx and Tz gradually causes J5 to shift toward the limit switch, and J1 and J4 also slowly deviate from the zero point (though not as much as J5). The upper computer is set to open-loop mode.
In the images below:

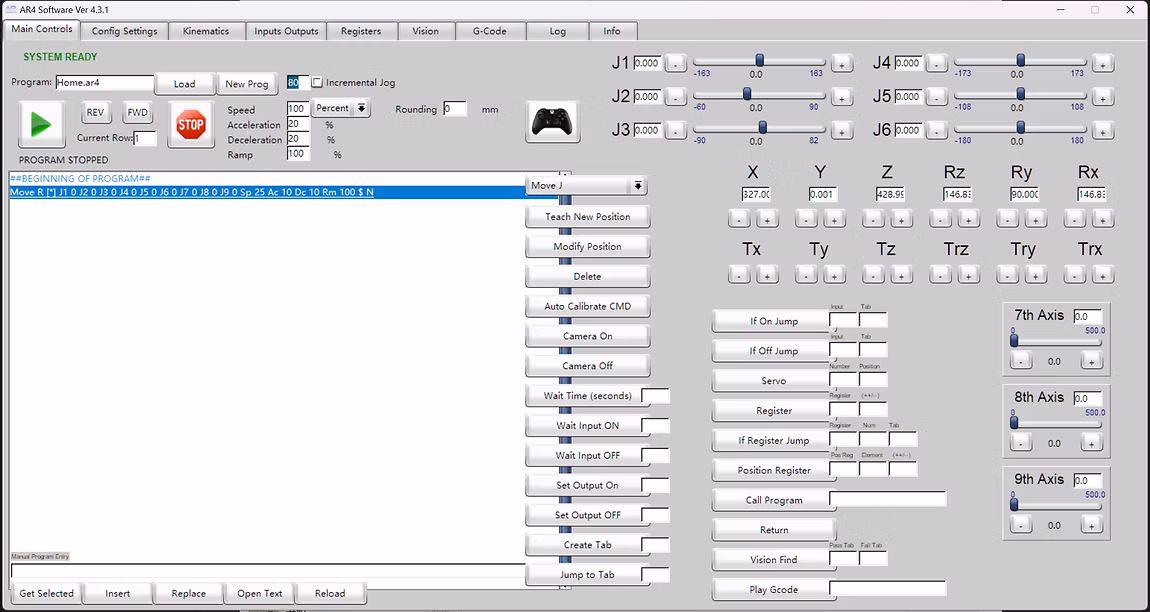

Image 1 shows the robotic arm in the home position.

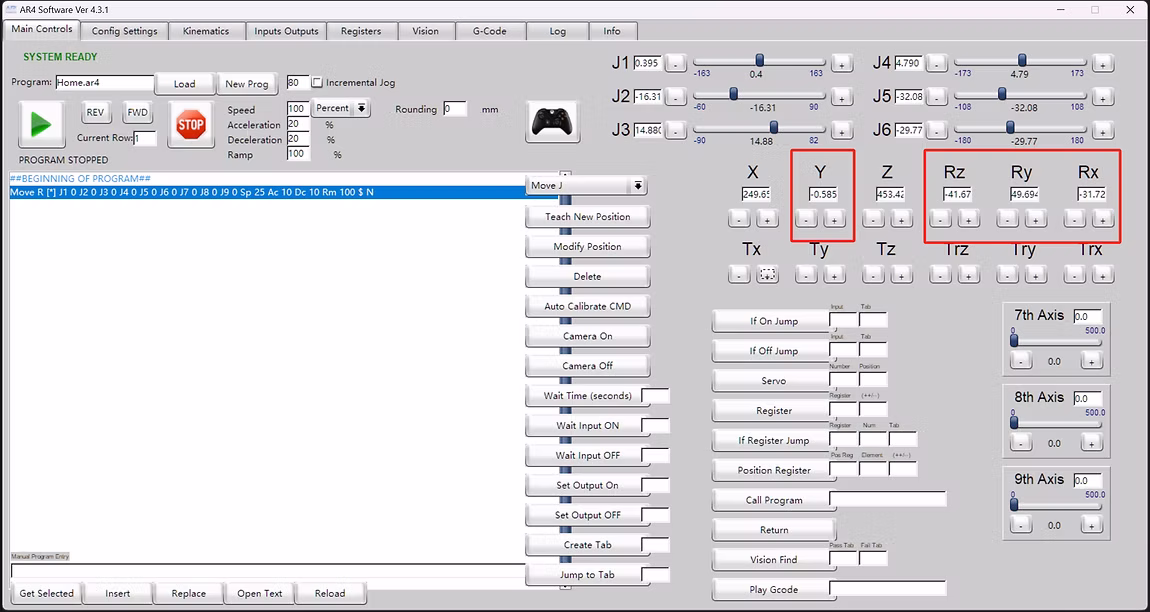

Image 2 shows the state after a complete cycle of moving Tx up and down by about 20 cm.
After executing the home command, it can still return to the correct "7" shape position.
I apologize for the delay I will dig into this, the tool jogging is generally used to reorient approach vectors of the tool and given its limited use I may have overlooked something. I will look into this and see if there is a compounding error or bug that I missed.
Thank you for your reply, Chris. Anticipate update if there are any new developments. If it's an issue with my settings, please let me know as well. Thank you very much.
