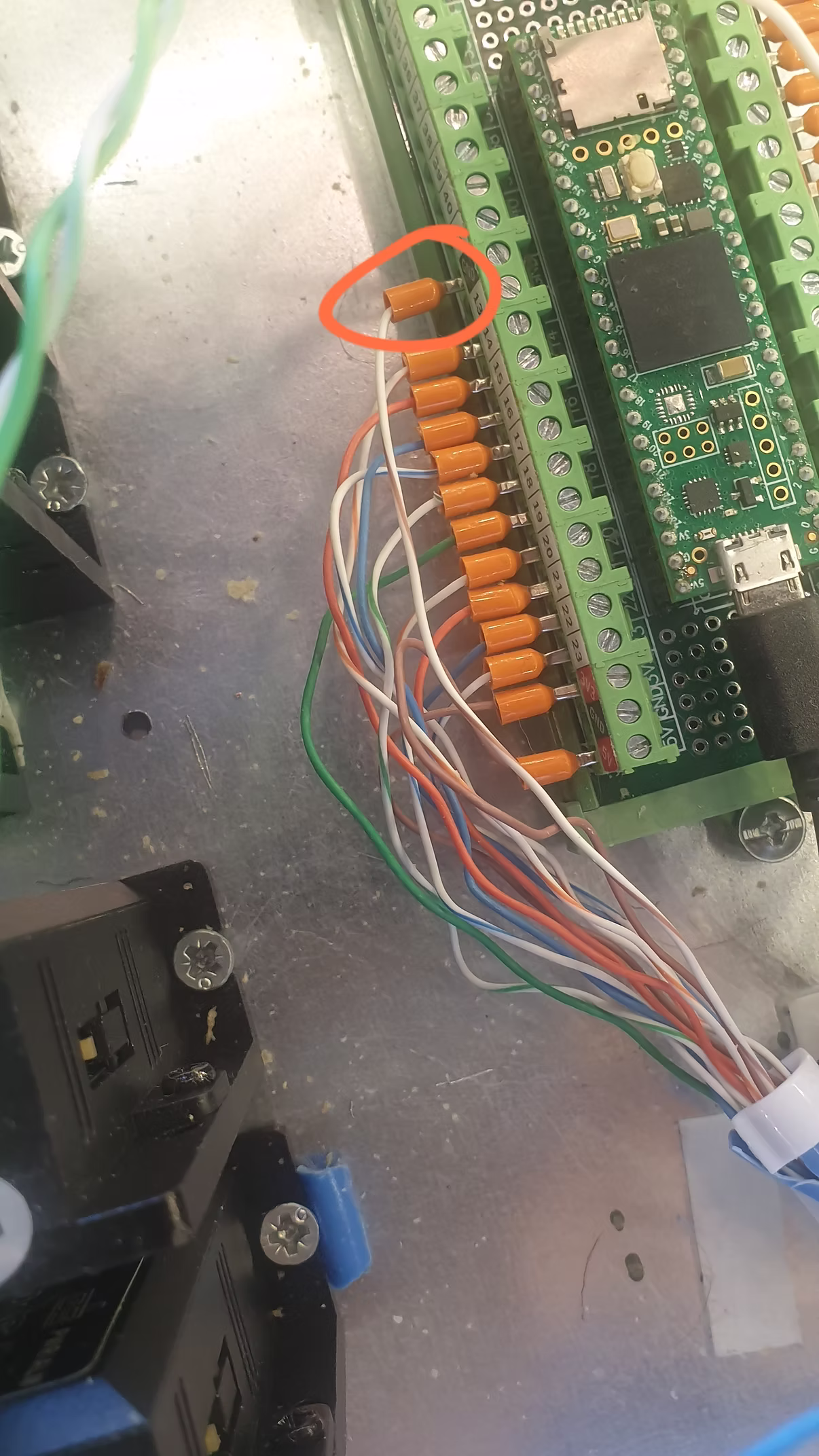

I reconnect all cables but I have a problem with AR4 moves to the wrong position. Jog command also doesn't work correctly.
It seems that J1 and J3 axis moves with wrong angles. @Chris Annin can you tell me what to check in my AR4 setup?
switch wires on the driver only one, for example the black with the green and it will change directions
Can you email pics/video illustrating the angles commanded vs what is executed so I have an idea how far off each axis is. Double check that you do not have the J1 and J3 motors swapped. This has been a common mistake - with the 50:1 J3 motor and 10:1 J1 motors swapped on the wrong joints the positions will be off quite a bit. Also check your driver dip switch settings to make sure they are on the correct micro step.
@chris-annin @Chris Annin You are right. I made wrong motor connections. I will change it. I will check all relevant links. I will inform you.
@ttrobotics Did you check de J1 Limit switch? It seems like the J1 limit swtich has a false contact when GND o 3.3v has no contiue
I checked the J1 limit switch. There's no problem with the connection.
(558) J1 limit swicth control - YouTube
@ttrobotics It appears J3 is moving too fast and J1 far too slow. I suspect you have the motors swapped. Please check that and let me know.
Also the calibration wil fault out if the switch isn't made within full rotation of that joint so if the 50:1 motor is installed on J1 instead of J3 it wont make it to the switch in time.
J2 Calibrate
The video of all the joints is on my Youtube channel
J3 Calibrate
The video of all the joints is on my Youtube channel
