AR3 in South Korea. i have a trouble software display

i finished AR3 assambling just few days ago

i am testing AR3 programming

but i can't fix display setting even i changed display setting smaller.

Comment 5

Kstan Simit

I think because screen resolution issue cause alignment changed, u can edit ACSR.py and change line ~6233: ProgEntryField = Entry(tab1,width=<change to suitable width avoid box cover the button>)

userpie

THANK YOU kstan simit 🙂

i wan't ProgEntField.

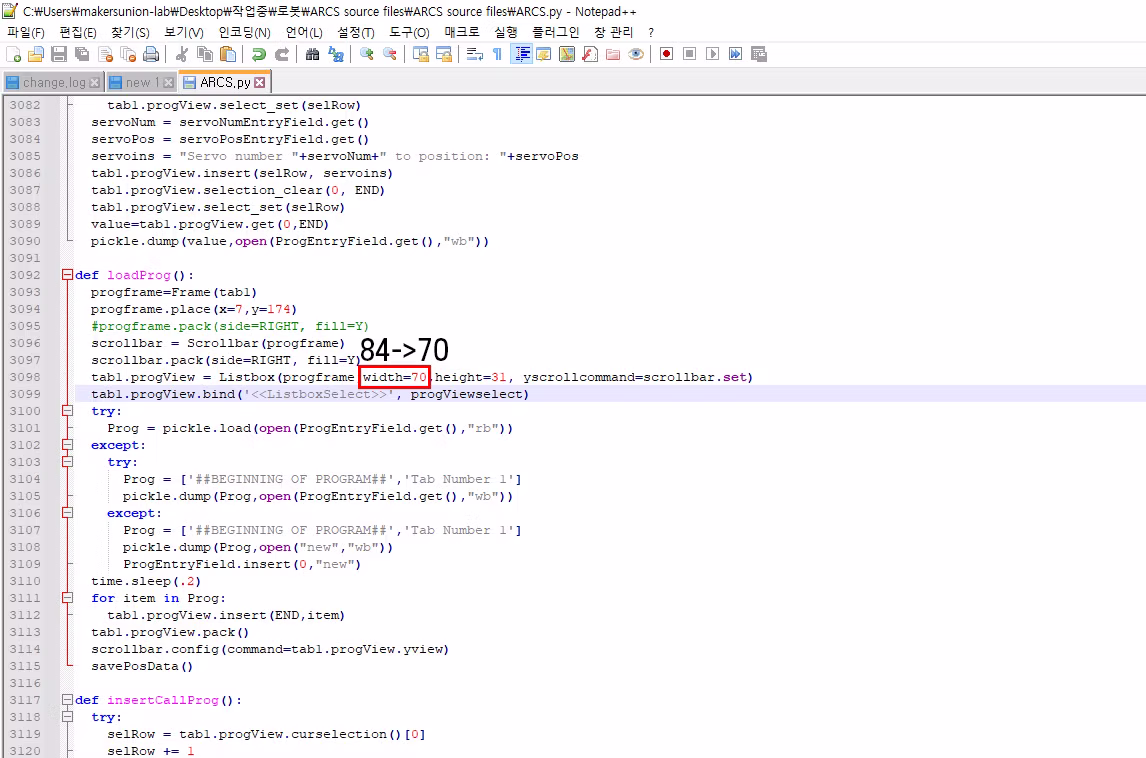

i changed "proframe width"

Jaegak Lee

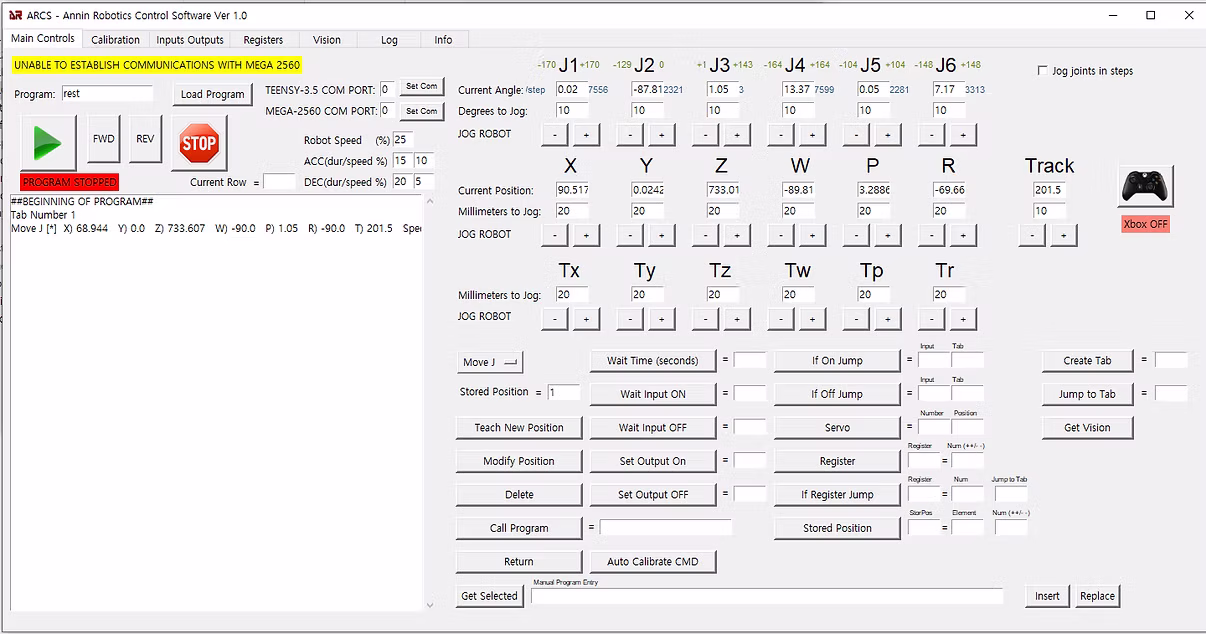

1. If I adjust 84 -> 70 on my PC

  • Screen OK
  • However, the USB port (MEGA2560, Teensy3.5) is not recognized.

2. What's the problem? Please advise.

3. The monitor must not be adjusted.

userpie

thank you..~~

i will try

Kstan Simit

just check device manager get your com port number, or use arduino ide check your com port no, and set in the program
