not able to connect to teensy 4.1 from python
Hello all,
my electronic box build is based on AR4, but the robot is AR3. Therefore i use the AR4_teensy41_CUI skatch.
situation:

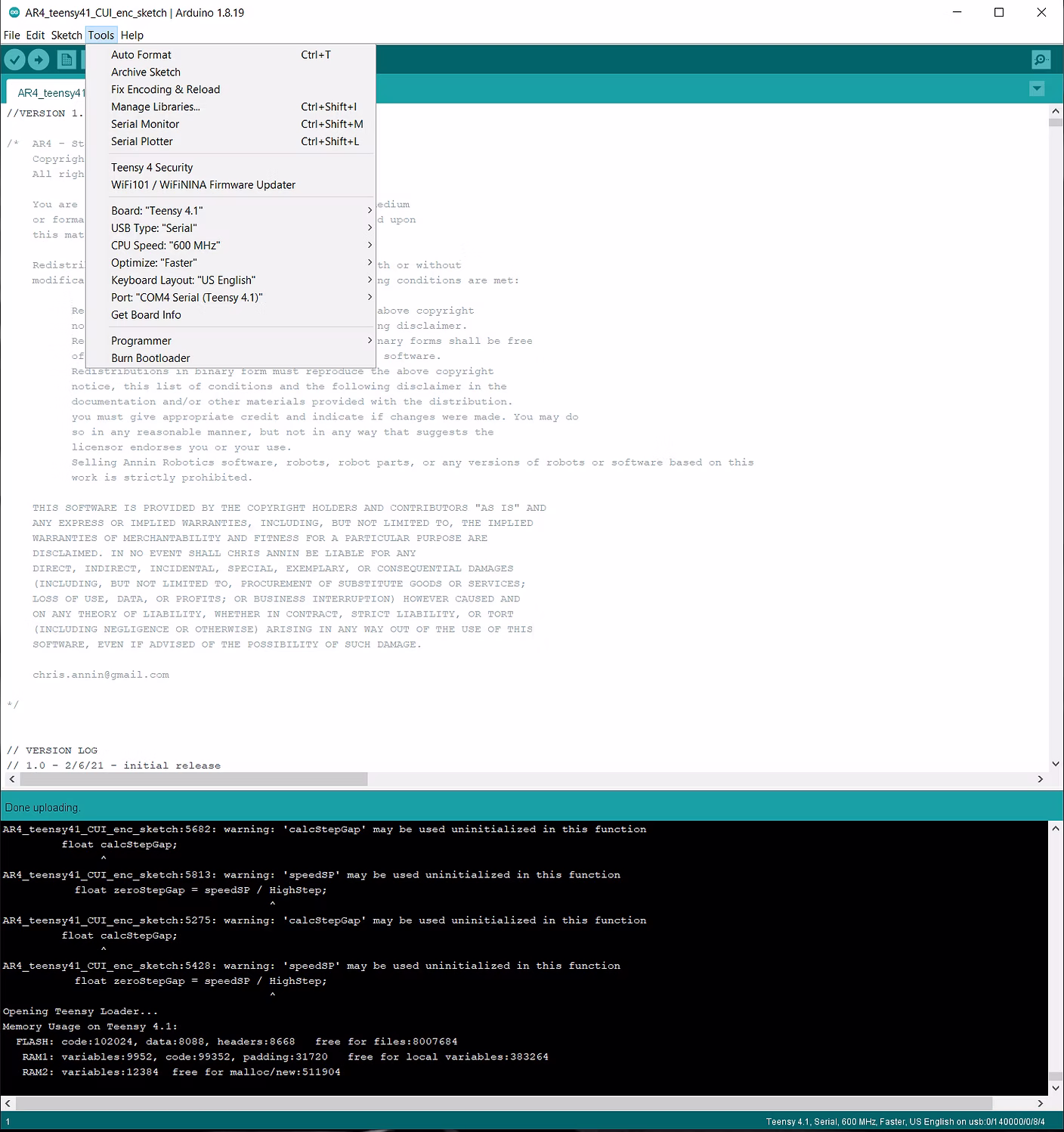

i can connect from Arduino (both (Arduino + Teensy) SW-packags installed) to Teensy to upload sketch:

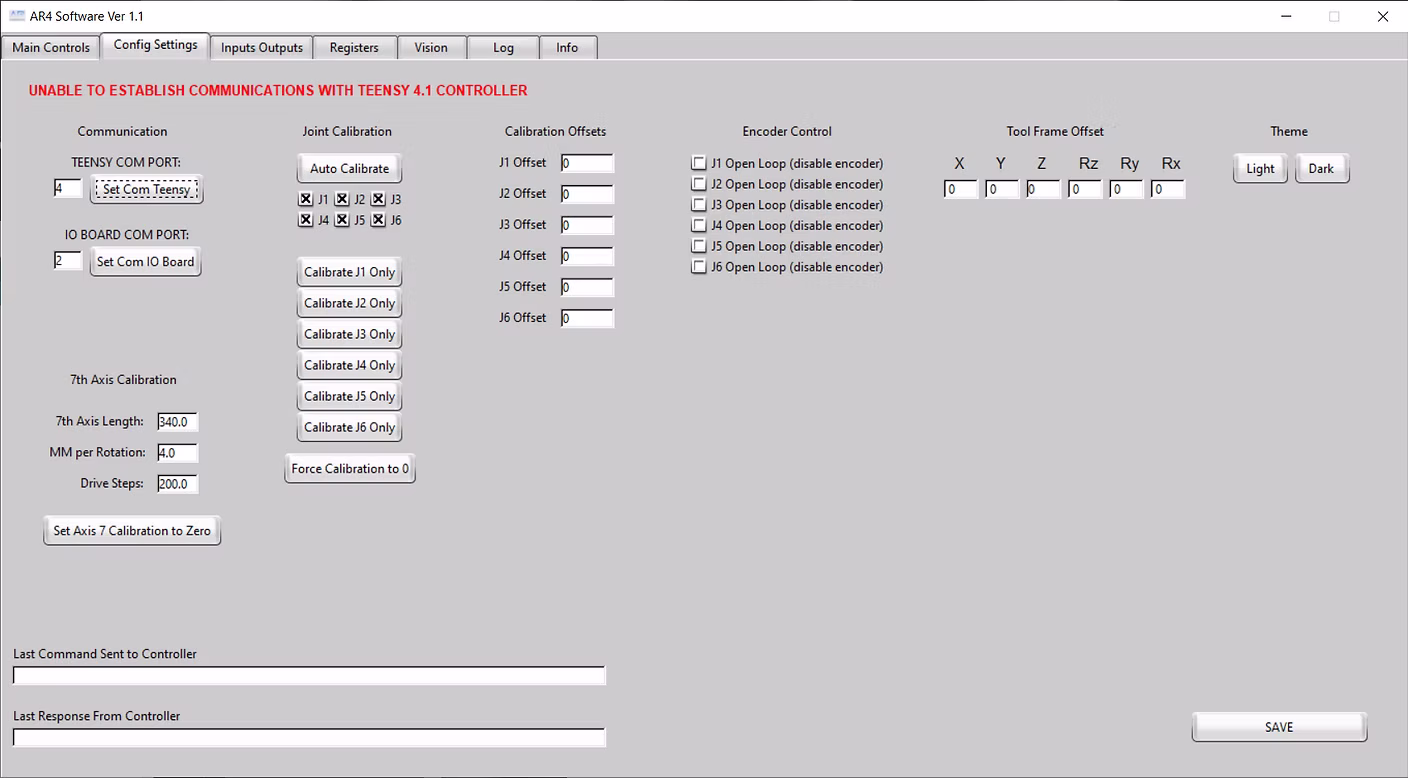

but when i open the python AR4 Software and set the com to: 4 (and click on the button: "Set Com Teensy") it still shows the error message: "unable to establish communications with Teensy 4.1 controller:
any suggestions how to debug/check the connection?
br Martin
Hello Simon, the baud rate is set in the app to 9600. my problem with the new app version is that I can not connect to Teensy when I select the correct com port. I still try to understand what the problem is.
somehow i wonder that it looks like that this problem is only on my end. even when i run a vm on win10, i have exactly the same issue.
anyway, I will post an update once i have some news on this.
br Martin
5 replies
Martin Hermann
minor update: when I try to save the config, i get an error in console:
(ar4-py37) PS C:\........\Annin Robotics\AR4 HMI interface source> python .\AR4.py
Exception in Tkinter callback
Traceback (most recent call last):
File "C:\.....\anaconda3\envs\ar4-py37\lib\tkinter\__init__.py", line 1705, in __call__
return self.func(*args)
File ".\AR4.py", line 4262, in SaveAndApplyCalibration
toolFrame()
File ".\AR4.py", line 4012, in toolFrame
ser.write(command.encode())
NameError: name 'ser' is not defined
note about the windows exe app: when i run the exe version, only a small window starts and the curser spins but the main app is not started.
