User build
Ari's AR4 build
AR4 robot arm
- Model
- AR4
- Status
- In progress
The build, step by step
Follow the journey in CommunityChapter 1 · Jul 9, 2025
1st day
Debur, clean, and chase all holes with bolts before you start. I used a bench vise with wood jaws to press bearings, and blocks of wood to push deeper. Note: Avoid saw dust from entering race ways. https://cqpppstrkbfubfnjwcuc.supabase.co/storage/v1/object/public/community-media/legacy/b1cd37b8-1752070470-1st-Day.webp
Comment on this stepChapter 2 · Jul 9, 2025
STEPPERS!
#7 https://cqpppstrkbfubfnjwcuc.supabase.co/storage/v1/object/public/community-media/legacy/22e1d367-1752070876-STEPPERS.avif
Comment on this stepChapter 3 · Jul 9, 2025
J4
M3 14 soc bolts too short? Not enough thread engagement to motor? /images/forum/media/875bc3c04ababb50.avif /images/forum/media/54e9fb9316e8f5a7.avif Tube thread miss aligned, wont tread. Much easier to install when motor not attached. https://anninrobotics.vercel.app/media/oldsite-86b4bdab-eb46-5f35-9ccc-51e9bb9a8c98?f=.webp
Comment on this stepChapter 4 · Oct 13, 2026
1st day: deburr, clean, press bearings
Deburr, clean, and chase all holes with bolts before you start. I used a bench vise with wood jaws to press bearings, and blocks of wood to push deeper. Note: Avoid saw dust from entering race ways.
Chapter 5 · Oct 13, 2026

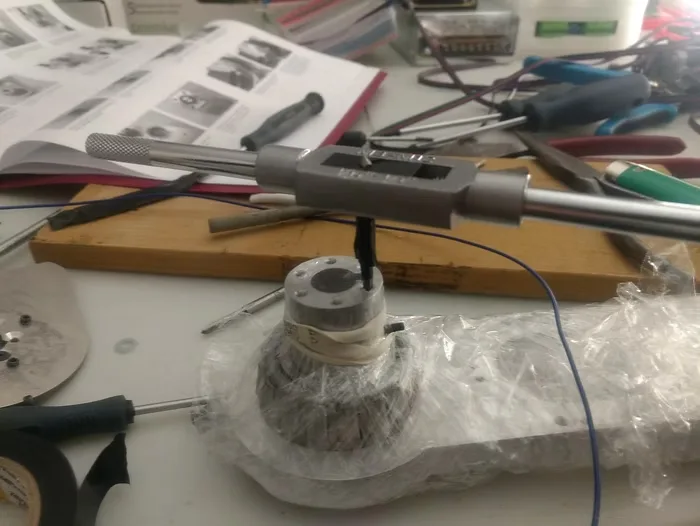

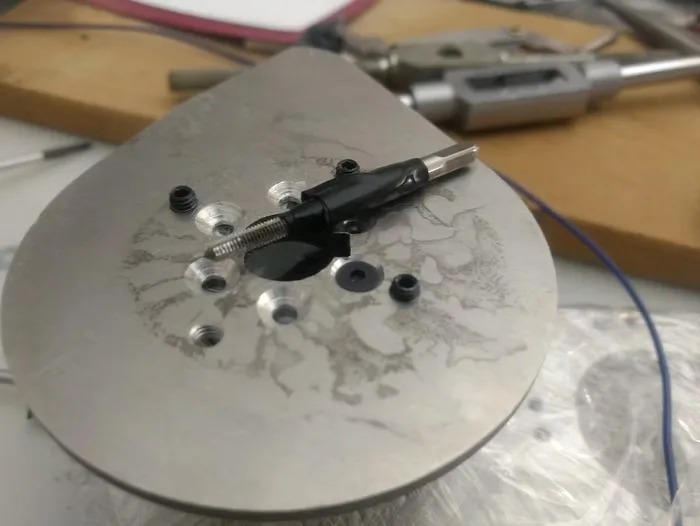

Cleaning and tapping threads
10mm threads cleaned. M3 0.5 tap, lots of plastic wrap to protect bearings. Used wire in the blind hole to measure depth, then added tape on the tap.
Chapter 6 · Oct 13, 2026
Steppers arrived
STEPPERS! #7
Chapter 7 · Oct 13, 2026

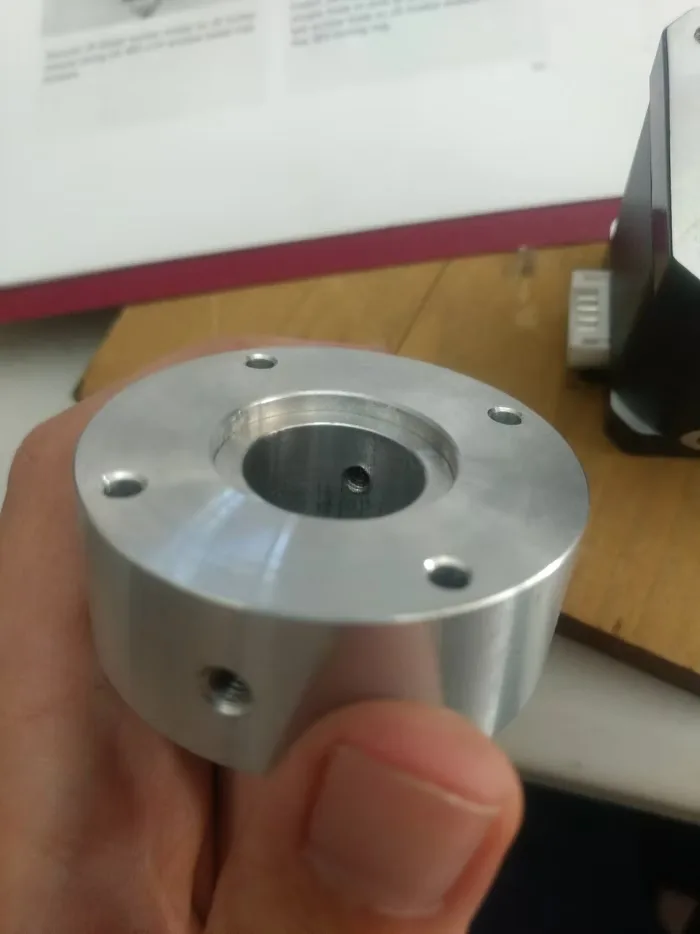

J4 motor bolts and tube thread
M3 14 socket bolts too short? Not enough thread engagement to the motor? Tube thread misaligned, won't thread. Much easier to install when the motor is not attached.
