Capacitive Proximity Sensor

Thought I'd share one of my recent experiments - a capacitive proximity sensor built into the arm. I've been wanting to try this out for a while and it works pretty well as a proof-of-concept. There have been small projects on proximity sensing here and there but I haven't seen it actually used in an arm. It makes for a simple and cheap alternative to actual torque or force sensing.

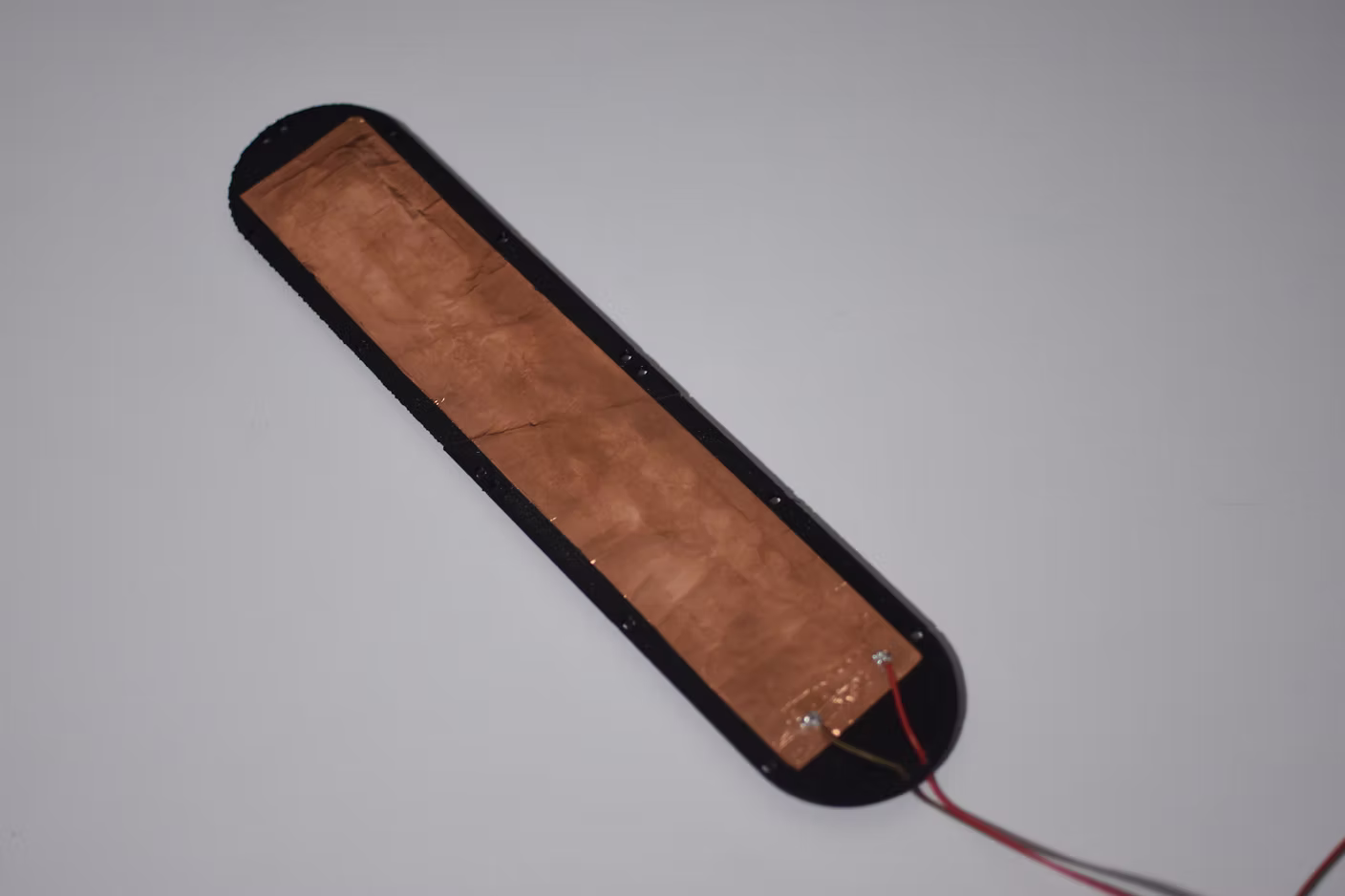

The concept itself is pretty simple and can be easily implemented with https://playground.arduino.cc/Main/CapacitiveSensor/ . For the capacitive plate, I used alternating layers of copper tape and aluminium foil, about 3 to 4 layers of each, along with a 40MOhm resistor.

Unfortunately, I wasn't to get much working beyond this due to the EMI from the motor cables (this is with only J1 powered). I'm not really up for re-wiring the arm so I'm putting this idea aside for now. Still, I think it's a really cool concept. If anyone else gets to properly shielding their wiring and takes this further, I'll be interested to see the results!

Cheers,

Dexter

Comment3

Kstan Simit

oh, this post is useful. I watch your youtube video before come to forum. I'd got my answer. Well done and thanks sharing Dexter!

Chris Annin

This is awesome, thanks for sharing.

Rakesh

Hello, I am currently working on a problem which is to detect human collision with a robotic arm. The sensor you made is helpful to solve it. May I know which tutorial you followed to make this sensor? What are the problems you are facing while using it?
