Motor collision error on AR3...

Hello,
I purchased the AR3 kit a few months ago, along with a Teensy 4.1 and CUI AMT103-V encoders from Arrow Electronics.

When I try to run the motors individually with the encoders connected, I consistently encounter a “motor collision” error. I am using the AR4 HMI Interface 3.0 software (.exe).

I should also mention that I was unable to source the Molex connectors in my country, so I used jumper wires for the connections instead.

I would appreciate any suggestions or insights on what might be causing this issue.

Thank you.

  • 2 comments

Chris Annin

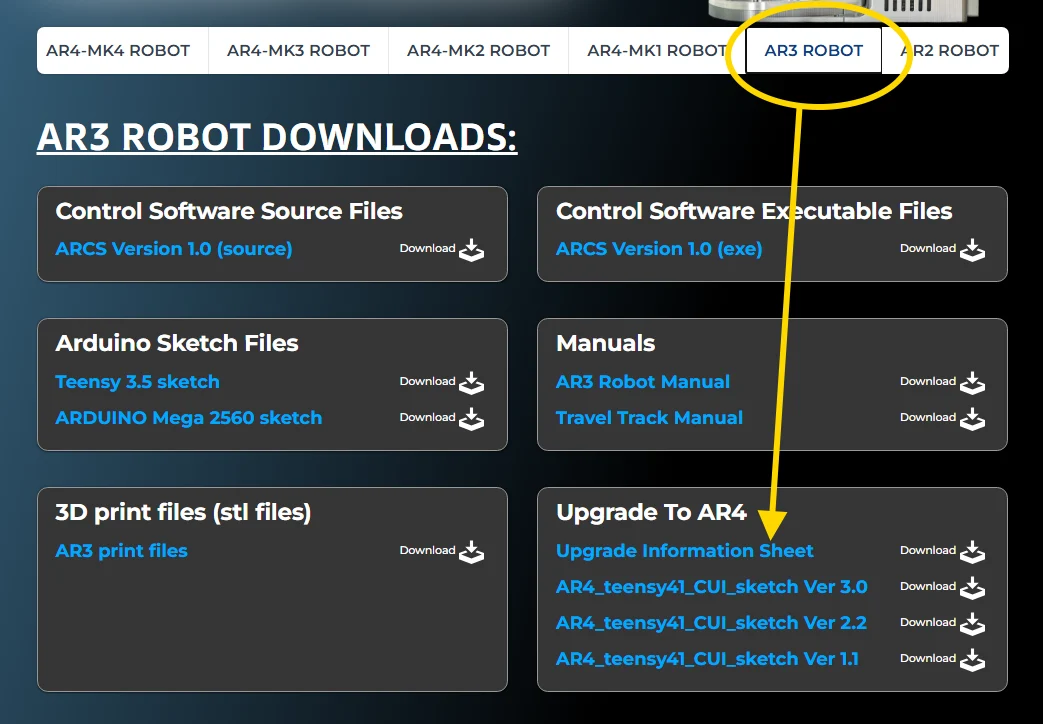

Hello, please check out the AR3 tab and review the upgrade sheet for some helpful information. Let me know if you have any questions.

1.00

John Dammeyer

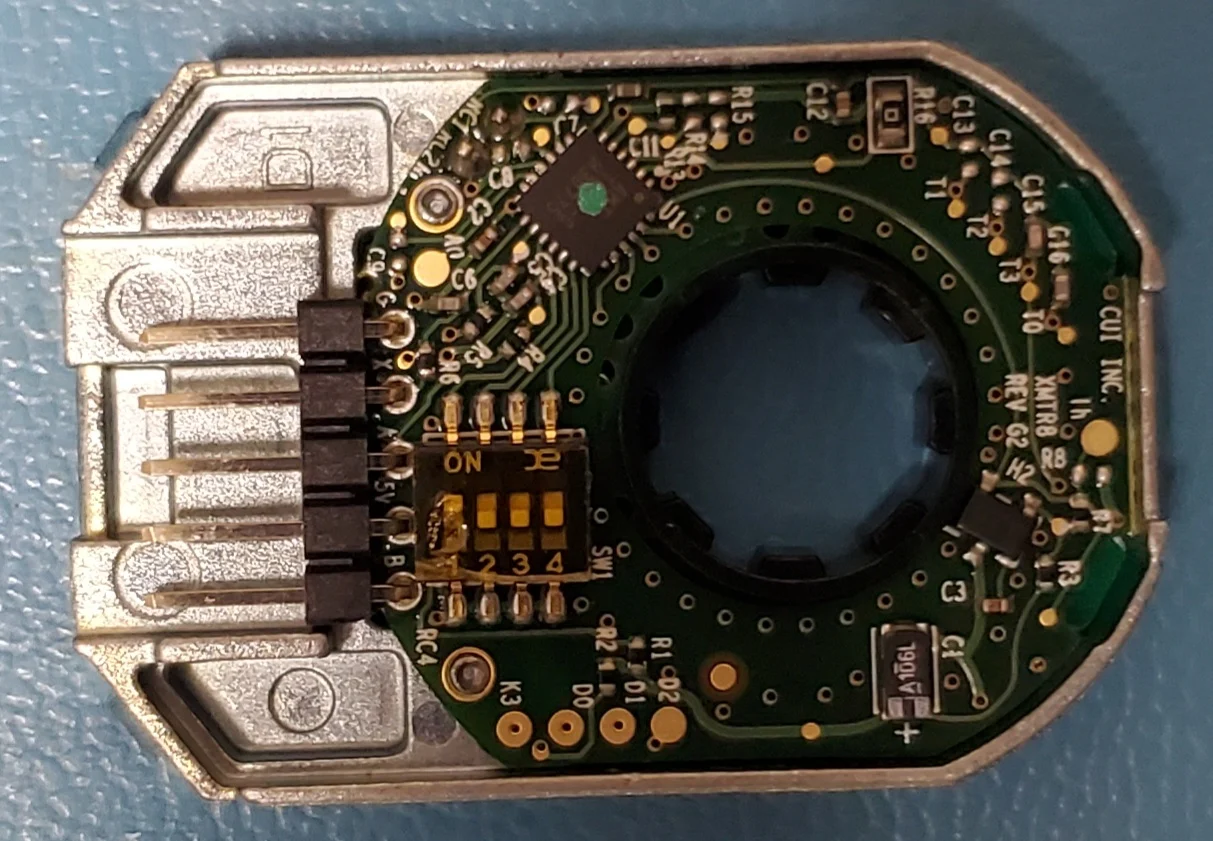

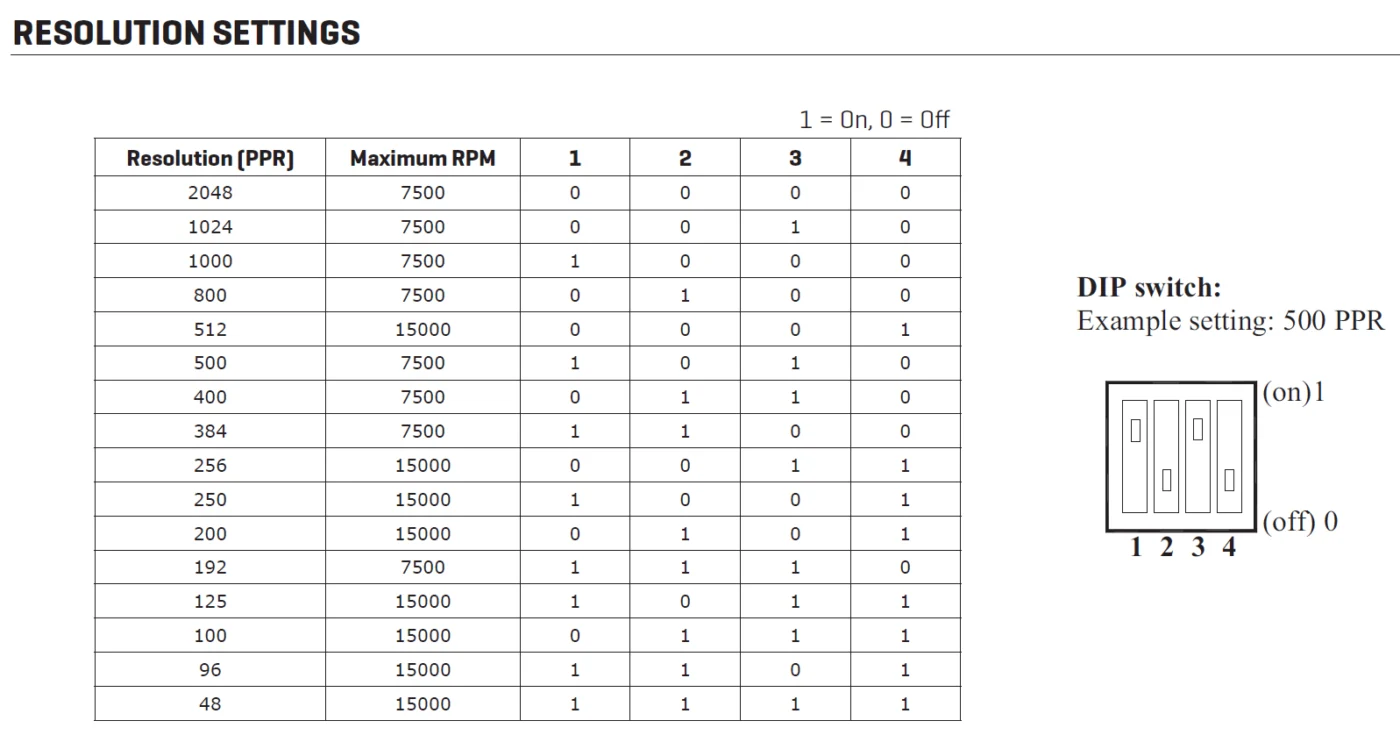

Granted I only have J1..J3 fabricated and wired but what I did is set the encoder for 1000 pulses per rev which is 4000 edges per rev.

1.00

1.00

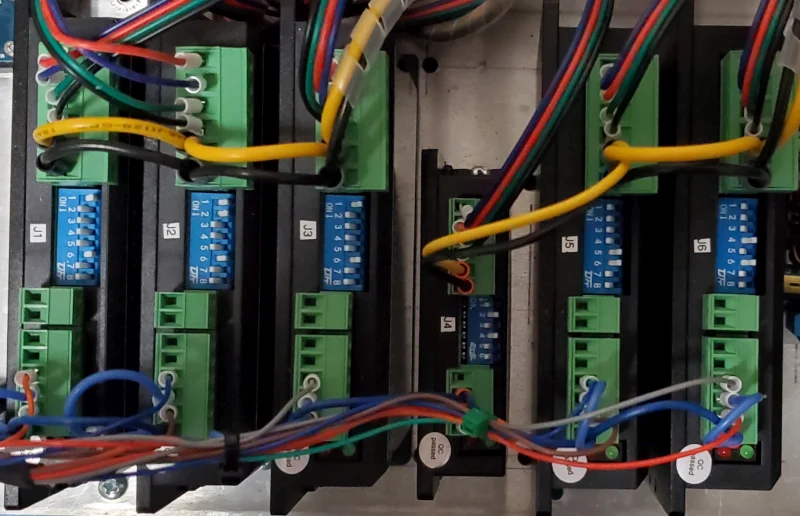

I also configured the AR3 StepperOnLine AR3 drivers to match the AR4 settings:

1.00

Now I can use the most recent AR4 software without worrying about changing parameters in the code. When I ask J1..J3 to move a specific distance it moves the correct amount.
You will have to home each axis to avoid those motor collision errors. Even if you just hook up a switch and tell it to calibrate only that axis and then press the switch.
