The build, step by step
Follow the journey in CommunityChapter 1 · Jul 18, 2025

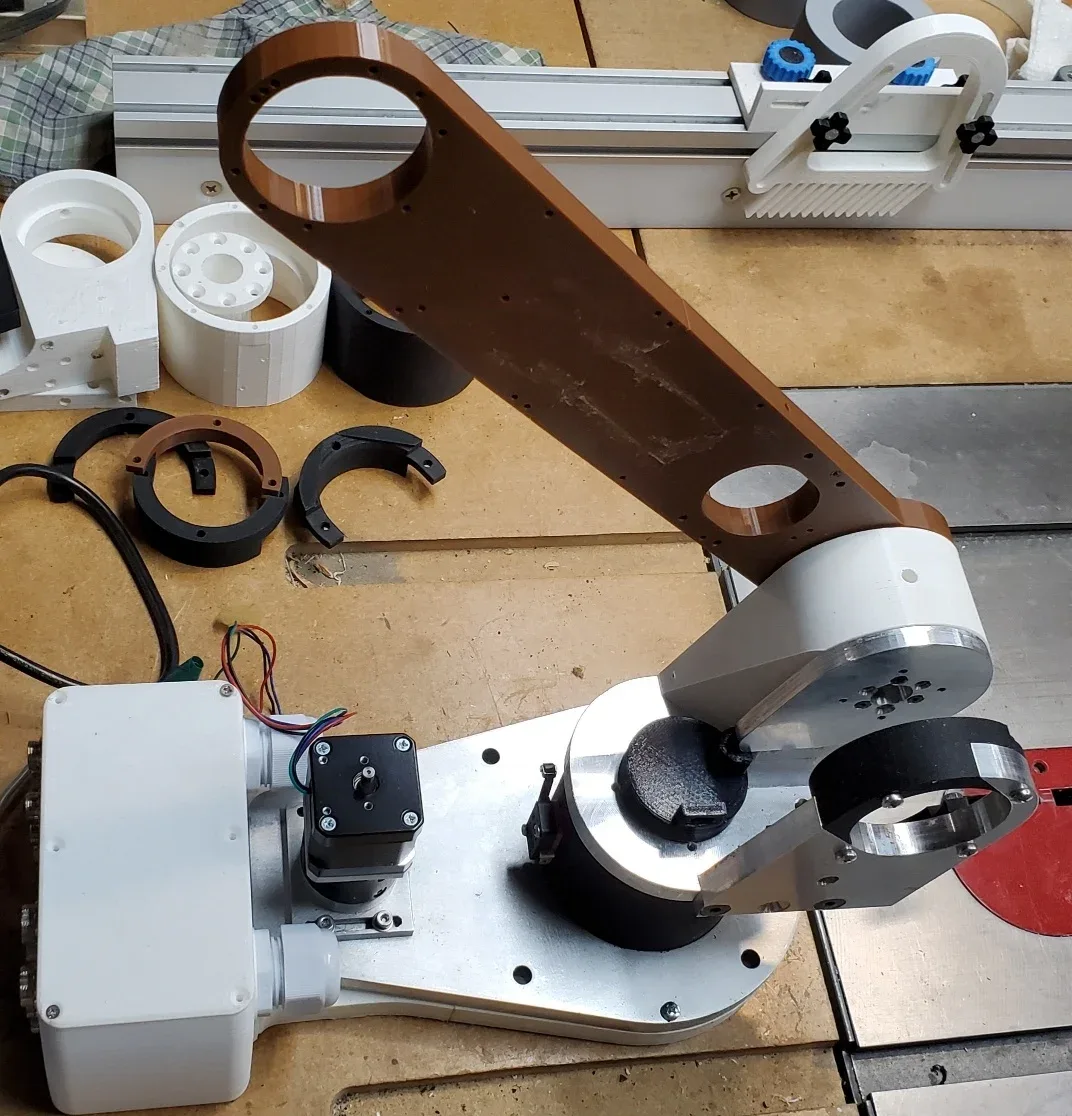

AR3 with Castings for many of the metal parts.
Comment on this stepI've started to build the AR3 since I already have a number of encoders in stock. So I'll order the AR3 series motors instead. In order to create some of the castings instead of machining bar stock I've used a combination of the 2D drawings and imported via either an old version of GeomagicCAD or a friend has used Fusion360 on the STL files to grab some of the measurements that aren't immediately obvious on the 2D drawings.
Got about half the 3D printed covers done. Have both Teensy 3.5 and 4.1, Mega3560 and pretty well most of the bearings.
I'm using AlibreCAD to do my drawings. Will use AlibreCAM to machine the castings and other metal parts.

Chapter 2 · Jul 18, 2025
AR3/AR4 Build in Victoria,BC
Comment on this stepI've started building the AR3 with some of the AR4 changes. I have both the Teensy 3.5 and now a Teensy 4.1. I have a number of encoders so I'm going to do it that way rather than use the StepperOnline motor/encoder pair. Same with a bunch of stepper motor drivers in the parts bin.
I've created Alibre PART files from the drawings which was a really useful way to learn how it was put together. Most of the bearings have arrived from various suppliers. And I'm pretty well done all the 3D printing.
To make the metal parts I'll first make patterns and then cast the rough blanks out of scrap aluminum. Then use my CNC mill and ELS controlled lathe to take them to completion.
Here are the first photos. I have my ducks in a row on the 3D printed parts.


Chapter 3 · Feb 2, 2026
J2_MotorSupport
Comment on this stepFinally finished the milling on the modified J2 MotorSupport bracket. I started and had all the holes drilled and counter sunk for the original AR3 version.
But then the AR4_MK4 showed up and I like the idea of not taking apart the motor planetary drive to mount it. But the AR3 J2 motor is no longer available and the AR4 J2 motor is larger in diameter and longer. So the 3D printed version didn't fit my AR3 J2 motor.
So back to Alibre to first create the slot to lift out the motor and then design from scratch the inserts to be 3D printed.
I still can't get really nice finishes on the edges with my mill. Not sure if it's the cutter, the speed or backlash but at least it's done. Now to find a piece of 1.75" thick aluminum to replace the 3D printed piece which has no strength.
Oh and the drawing for the J2 Tension Ring was incorrect so I made one that is too thick. Have to thin that down to 3mm so there's better clearance for the J2 motor. The arm is 3D printed just to give me a feel for size. I have a piece of 1/2" plate for this.
Hard to believe I started this project 3 years ago.
Chapter 4 · Feb 18, 2026
J4 Main Shaft Construction
Comment on this stepI'm building the AR3 that will use the Teensy 4.1 and the AR4 software and inexpensively as possible but not totally 3D printed.

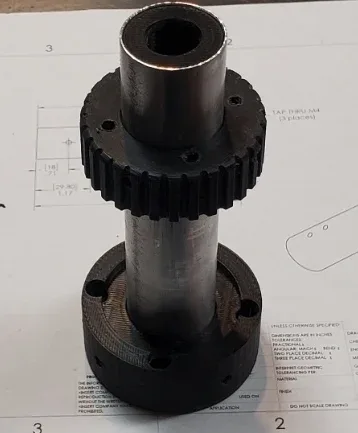

Buying the J4 Main Shaft as a long piece of stock aluminum was too expensive. Then I stumbled on some folding lawn chairs that used 1" OD aluminum tube. Problem is that it's really thin wall and likely even just trying to drill it may compress it out of round. As it is it turns nicely in the bearings and the rest of the parts are all a friction fit onto it.

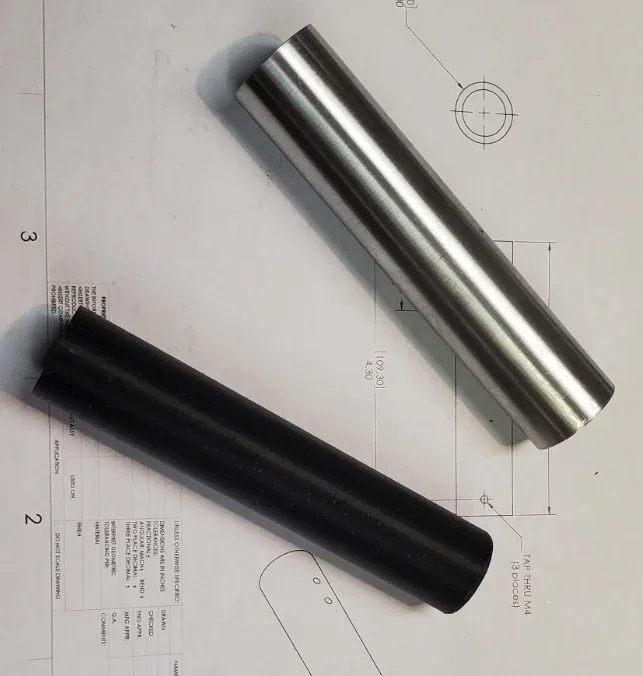

So what to do? Easy. 3D print an inner liner that is a slip fit into the tube and has a 12.7mm hole down the middle for the joint lead screw. I'll epoxy it in place and then I can easily hold it and drill/tap the 3 holes.
Chapter 5 · Feb 20, 2026
Control Cabinet Drawing
Comment on this stepI've attached an initial revision of my control cabinet and how I'm going to put mine together. Since I'm using the Teensy4.1 and the latest AR4-MK4 software I will likely also wire in the support for MODBUS. Especially since I have the software tools from https://www.modbustools.com/ for both master and slave. But I also want to add CAN bus support so the drawing shows how I'd use pins 30,31 (CRX3, CTX3) and switch the J5,J6 limits to 32,33.
The problem is that I see in the newest Teensy4.1 code that these pins are assigned to J8 step/dir. If I switch the declarations in the Teensy4.1 sketch and remove references to J8 will that confused the HMI software running on the PC?
Chapter 6 · Apr 8, 2026
AR3 Control Box
Comment on this stepFinally, after more than 3 years I have essentially finished the control box. Still to wire up is the second controller and the wiring for the air solenoid gripper control.
Still some work to do on the arm itself. I was doing a number of the parts in PLA-CF but lately Carbon Fibre filament is starting to look like asbestos. Which is too bad because it prints so nice and is so strong.
I do have a question. The AR4-MK3 HMI interface talks to my Teensy 4.1 which is now powered from the external 5V supply rather than the USB. I can't find anything in the user interface that reports the status of the limit switches. I'd like to be able to actuate them and see if they are correctly interpreted. As in I have them wired correctly.
Or does that feature not exist and perhaps it should?
Chapter 7 · Apr 11, 2026
Modified AR4-MK3 J5 Motor Bracket
Comment on this stepI'm using this on my AR3 and since I'm keeping the single ended encoder cables physically separated from the stepper motor cables. One for each side of the motors.
The problem is that they butt up against each other and although I could split them so they don't touch then it requires two tie wraps.
So instead I converted the STL file to a STEP file, trimmed the ends and printed them Now I can use one original and one shorter new version together and they don't touch. (Or just two of the newer ones). I've renamed it AR3MotorBracket since I'm using this on the AR3 arm not the AR4 and on more than one joint.
Chapter 8 · Apr 12, 2026
AR4.EXE 6.7 question
Comment on this stepWhat are the second set of J1..J9 check boxes for? If I click on Calibrate J1 only the second set doesn't need to be checked for J1. Auto Calibrate works fine with just J1..J3.
Chapter 9 · Apr 12, 2026
ESTOP Behavior
Comment on this stepFinally got the ESTOP button installed. Interesting. If I hit ESTOP while Autocalibrating the system does indeed stop.
Once I release the ESTOP the 6.7 user interface is now locked and needs task manager to kill it.
Chapter 10 · Jun 7, 2026
Updating Covers for AR3
Comment on this stepI have all 6 axis now working and homing and moving but the wires go through the tunnels making service a bit of a pain. For the J2 Arm the cover over the belt was easy as the new J2 ARM Cover Spacer had the same hole locations as the AR3 J2 Side Cover.
However, the changes to an internal limit switch for the J5 section means the holes have moved and the AR3 cover no longer fit. Converting the STL into a STEP file created a drawing over 46MB in size so that wasn't an option.
So instead I printed the AR4-MK3 Side and with calipers and a lot of tries (forgetting holes or moving them in the wrong direction) I finally accomplished a new J5 Side Cover and Logo.
The font for the AR3 text is close but a bit wider. And I couldn't create the recess so it was a smooth fit. Had to do a bit of filing on the letters.
Chapter 11 · Jun 13, 2026

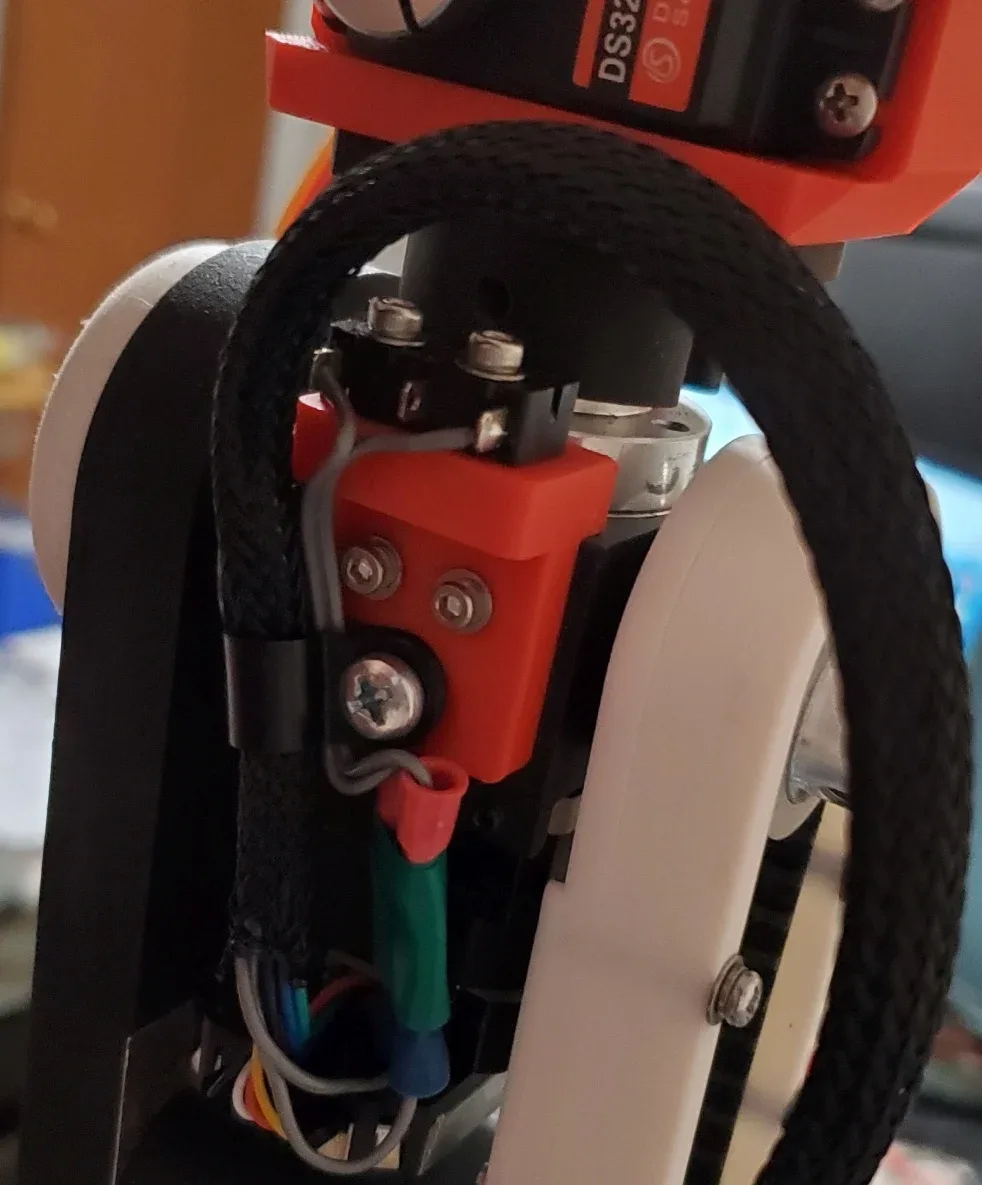

J6 Switch not made
Comment on this stepSomething in my dimensions is off a tad. Can someone post a photo of what it's supposed to look like when the switch has been made.
It looks like the AR3 motor extends too far. I can make along actuator tab but is the switch made with the slope or the tip? Is the tip really just the mechanical stop?
Chapter 12 · Aug 23, 2026
Working Surface Size
Comment on this stepI'm at the point where I need to bolt down the AR3/4 to some sort of table. I don't have a spare table so I thought a box with a tick counter top type work surface.
Rough dimensions: 60L x 30W x 16H. (24"x12"x7"). The top could be a bit longer to take into account the reach of the arm.
So say I did create and top surface say 80cm x 30cm (32"x12") and I wanted to create a grid pattern. If using imperial then 1" squares? If using metric 25mm squares?
Or should they be bigger squares? Should may table top be larger?
The box part will be have openings at the front and back to allow access to the connectors at the back and the ESTOP switch etc. at the front. Likely the control box will sit on a piece of plywood attached with drawer slides to the inside of the box.
Chapter 13 · Nov 6, 2026
The box is complete with slide out shelf for the power supply. Not sure yet how I'll finish it. Paint or maybe get fan
Comment on this stepChapter 14 · Nov 17, 2026
The table top is done and screwed to the cabinet. The AR3 bolted in place. I found I needed a dedicated PC for it so I
Comment on this stepWell yes and no. I had forgotten I'd converted the encoders and steppers to match the AR4 but the rest of the system is still an AR3. Couldn't remember what firmware was in the Teensy 4.1.
Finally got it all working without stepper/encoder issues while jogging.
