Automating book stacking in a production environment

AR4 Bookstacker

About my Build

So I started this journey about 8 months ago. My objective is to have a robot to place books into a box ready for shipment. I first got a little robot off of Amazon for 1000 bucks, it was maybe worth 100. I was able to get it to move a piece of paper from one location to another, so I knew I was onto something. After looking for something more stable, I happened upon Annin Robotics and the marvelous AR4. I spoke with my partner and ordered the kit and motor kit about 5 months ago.

It took a couple of weeks working in the evenings and 3d printing parts and the robot was built. I then watched the programing videos and went to work. I did run into several programming issues, I don’t know if these are limitations of the Annin software or not, but I can’t get past a couple of them. I have found workarounds for most, though draws out programming and now operation.

The bookstacker is now working it’s happy little claw off.

Workflow / Process

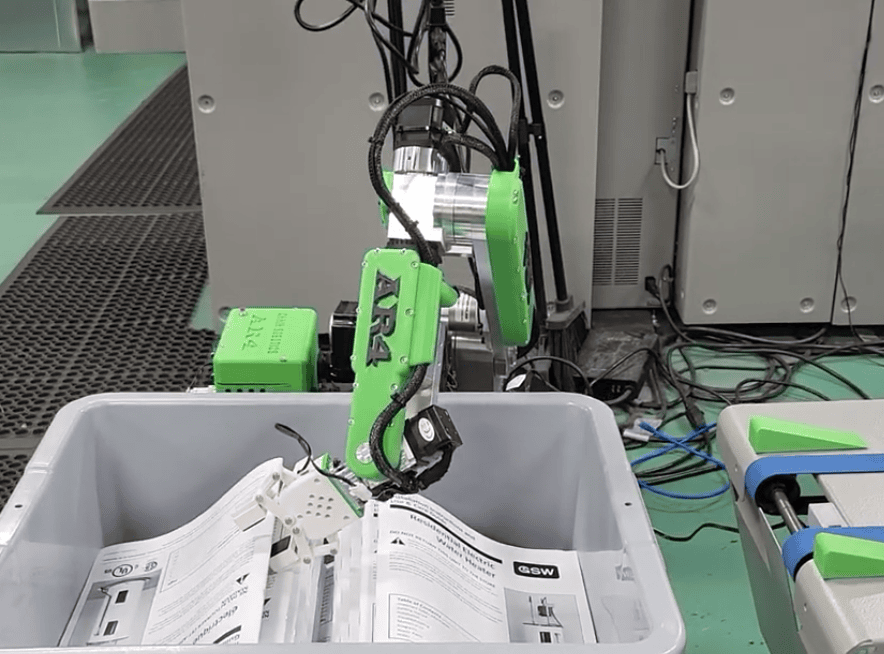

The robot auto calibrates, then positions itself in the ready location. When a book exits the printer and moves to cover an optical sensor, the claw closes and moves to stack the books into a bin.

My objective is to have 5 of these working to place the books into a box ready to ship.

Primary Use Cases

Industrial

Custom Modifications

Added custom gripper

Software Used

AR4 control system
